Current Electricity: JEE Main Physics Question with Solution

Q: Why use P = I^2 R instead of P = V^2 / R?

The diagram indicates current entering and leaving each network. Because is the common given quantity across all circuits, directly relates to .

Different combination of

3

resistors of equal resistance

\mathrm{R}

are shown in the figures. The increasing order for power dissipation is:

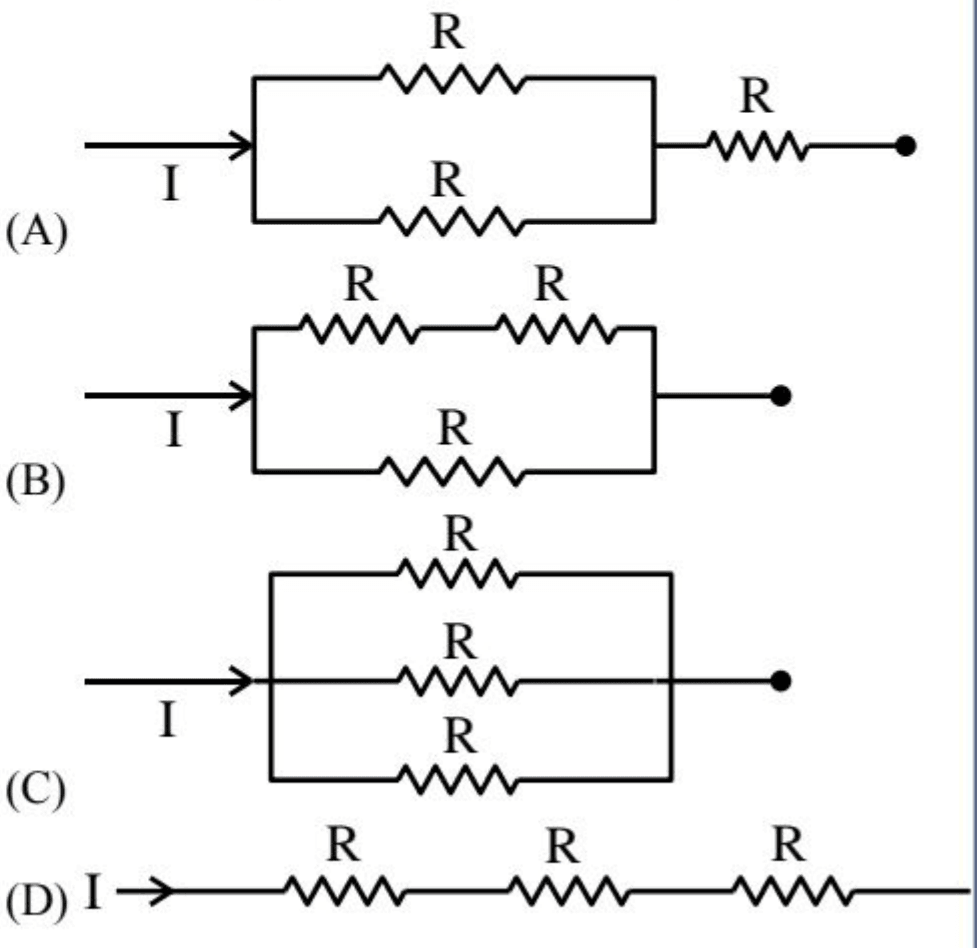

Four resistor configurations (A), (B), (C), (D) with current I entering each network of three identical resistors of resistance R.

Your answer stays private

What feels right?

No score. Commit to your first instinct. We’ll show what your mind noticed and what it missed.

A

\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}

B

\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}<\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{B}}

C

\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}<\mathrm{P}_{\mathrm{A}}

D

\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{D}}

Step-by-step solutionView

Correct answer

For a constant applied voltage $V$ , power dissipation $P = \frac{V^2}{R_{\text{eq}}}$ is inversely proportional to equivalent resistance, giving the order $P_C < P_B < P_A < P_D$ .

Option analysis

Why each option works or fails

A ·

\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}

Assumes that power dissipation is directly proportional to equivalent resistance ( $P \propto R_{\text{eq}}$ ) rather than inversely proportional ( $P \propto 1/R_{\text{eq}}$ ) under a constant voltage source. When circuits are connected across the same potential difference $V$ , use $P = \frac{V^2}{R_{\text{eq}}}$ , which means higher equivalent resistance results in lower total power dissipation.

B ·

\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}<\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{B}}

Incorrectly evaluates the equivalent resistance of the series-parallel combinations, misranking circuits A and B relative to D. Calculate $R_{\text{eq}}$ systematically: $R_A = \frac{2}{3}R$ , $R_B = \frac{3}{2}R$ , $R_C = 3R$ , and $R_D = \frac{R}{3}$ .

C ·

\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}<\mathrm{P}_{\mathrm{A}}

Mixes up the formula for power with constant current ( $P = I^2 R$ ) instead of constant voltage ( $P = V^2 / R$ ), leading to an inverted ranking. Since the potential difference across each whole circuit is fixed to the same voltage source $V$ , the total power is strictly $P = \frac{V^2}{R_{\text{eq}}}$ .

D ·

\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{D}}

None. This is the correct option. Correctly determines the equivalent resistances ( $R_C = 3R > R_B = 1.5R > R_A \approx 0.67R > R_D \approx 0.33R$ ) and inverts the order for power: $P_C < P_B < P_A < P_D$ .

Reviewed route

Solution

StepWorking

01given

Three identical resistors each of resistance $R$ are connected in 4 configurations with the same input current $I$ entering each combination: (A) Two in parallel with one in series: $R_A = R + \frac{R}{2} = \frac{3R}{2}$ (B) Two in series in parallel with one: $R_B = \frac{2R \cdot R}{2R + R} = \frac{2R}{3}$ (C) All three in parallel: $R_C = \frac{R}{3}$ (D) All three in series: $R_D = 3R$

02find

The increasing order of power dissipation among configurations A, B, C, and D.

03strategise

Since current $I$ enters each network, the total power dissipated in each circuit is $P = I^2 R_{eq}$ . Thus, $P \propto R_{eq}$ . The increasing order of power directly follows the increasing order of equivalent resistance.

04execute

Comparing the equivalent resistances: $R_C = \frac{1}{3}R \approx 0.33R$ $R_B = \frac{2}{3}R \approx 0.67R$ $R_A = \frac{3}{2}R = 1.5R$ $R_D = 3R$ Therefore, $R_C < R_B < R_A < R_D$ , which implies $P_C < P_B < P_A < P_D$ .

✓verify

All-parallel always gives the minimum resistance, and all-series gives the maximum. The mixed circuits naturally sit in between with $2R/3 < 3R/2$ . Hence $P_C < P_B < P_A < P_D$ is logically sound.

Hints that build this answer step by step

For multiple circuits connected to the same voltage source $V$ , how is the total dissipated power $P$ related to the equivalent resistance $R_{\text{eq}}$ ?
$P = \frac{V^2}{R_{\text{eq}}}$ , so $P$ is inversely proportional to $R_{\text{eq}}$
What are the equivalent resistances $R_A, R_B, R_C, R_D$ for the four configurations?
$R_A = \frac{2}{3}R,\; R_B = \frac{3}{2}R,\; R_C = 3R,\; R_D = \frac{1}{3}R$
Given $R_C = 3R > R_B = 1.5R > R_A \approx 0.67R > R_D \approx 0.33R$ , what is the increasing order of power dissipation?
$P_C < P_B < P_A < P_D$

✓ Source and academic review

Question type: Single correct
Exam relevance: JEE Main · Physics
Concepts assessed: Physics
Academic status: Reviewed by official_key
Source: pyq
Editorial review: 8 September 2026

Quick checks

Students also ask

Why use P = I^2 R instead of P = V^2 / R?

The diagram indicates current $I$ entering and leaving each network. Because $I$ is the common given quantity across all circuits, $P = I^2 R_{eq}$ directly relates $P$ to $R_{eq}$ .

Answer

For a constant applied voltage $V$ , power dissipation $P = \frac{V^2}{R_{\text{eq}}}$ is inversely proportional to equivalent resistance, giving the order $P_C < P_B < P_A < P_D$ .

Why each option works or fails

A: $\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}$ - Assumes that power dissipation is directly proportional to equivalent resistance ( $P \propto R_{\text{eq}}$ ) rather than inversely proportional ( $P \propto 1/R_{\text{eq}}$ ) under a constant voltage source. When circuits are connected across the same potential difference $V$ , use $P = \frac{V^2}{R_{\text{eq}}}$ , which means higher equivalent resistance results in lower total power dissipation.
B: $\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}<\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{B}}$ - Incorrectly evaluates the equivalent resistance of the series-parallel combinations, misranking circuits A and B relative to D. Calculate $R_{\text{eq}}$ systematically: $R_A = \frac{2}{3}R$ , $R_B = \frac{3}{2}R$ , $R_C = 3R$ , and $R_D = \frac{R}{3}$ .
C: $\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{D}}<\mathrm{P}_{\mathrm{A}}$ - Mixes up the formula for power with constant current ( $P = I^2 R$ ) instead of constant voltage ( $P = V^2 / R$ ), leading to an inverted ranking. Since the potential difference across each whole circuit is fixed to the same voltage source $V$ , the total power is strictly $P = \frac{V^2}{R_{\text{eq}}}$ .
D · correct: $\mathrm{P}_{\mathrm{C}}<\mathrm{P}_{\mathrm{B}}<\mathrm{P}_{\mathrm{A}}<\mathrm{P}_{\mathrm{D}}$ - None. This is the correct option. Correctly determines the equivalent resistances ( $R_C = 3R > R_B = 1.5R > R_A \approx 0.67R > R_D \approx 0.33R$ ) and inverts the order for power: $P_C < P_B < P_A < P_D$ .

Step-by-step solution

given: Three identical resistors each of resistance $R$ are connected in 4 configurations with the same input current $I$ entering each combination: (A) Two in parallel with one in series: $R_A = R + \frac{R}{2} = \frac{3R}{2}$ (B) Two in series in parallel with one: $R_B = \frac{2R \cdot R}{2R + R} = \frac{2R}{3}$ (C) All three in parallel: $R_C = \frac{R}{3}$ (D) All three in series: $R_D = 3R$
find: The increasing order of power dissipation among configurations A, B, C, and D.
strategise: Since current $I$ enters each network, the total power dissipated in each circuit is $P = I^2 R_{eq}$ . Thus, $P \propto R_{eq}$ . The increasing order of power directly follows the increasing order of equivalent resistance.
execute: Comparing the equivalent resistances: $R_C = \frac{1}{3}R \approx 0.33R$ $R_B = \frac{2}{3}R \approx 0.67R$ $R_A = \frac{3}{2}R = 1.5R$ $R_D = 3R$ Therefore, $R_C < R_B < R_A < R_D$ , which implies $P_C < P_B < P_A < P_D$ .
verify: All-parallel always gives the minimum resistance, and all-series gives the maximum. The mixed circuits naturally sit in between with $2R/3 < 3R/2$ . Hence $P_C < P_B < P_A < P_D$ is logically sound.
