Current Electricity: JEE Main Physics Question with Solution

A student is provided with a variable voltage source

\mathrm{V}

, a test resistor

\mathrm{R}_{\mathrm{T}}=10 \Omega

, two identical galvanometers

\mathrm{G}_{1}

and

\mathrm{G}_{2}

and two additional resistors,

\mathrm{R}_{1}=10 \mathrm{M} \Omega

and

\mathrm{R}_{2}=0.001 \Omega

. For conducting an experiment to verify ohms law, the most suitable circuit is:

Your answer stays private

What feels right?

No score. Commit to your first instinct. We’ll show what your mind noticed and what it missed.

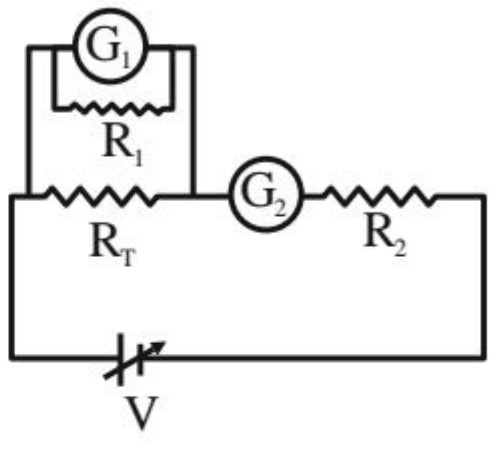

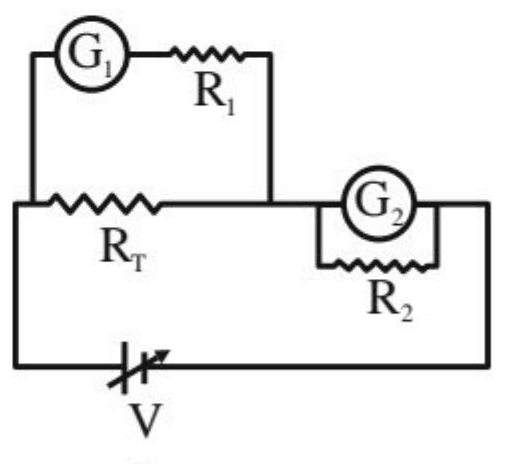

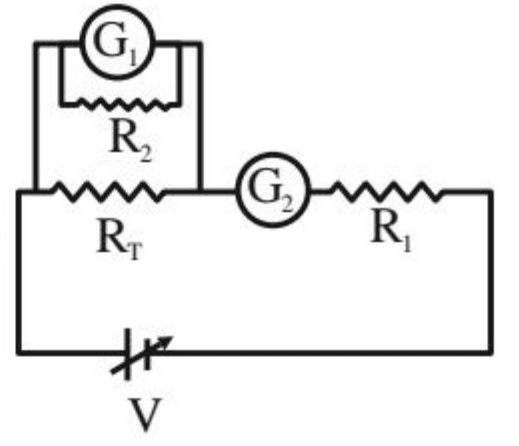

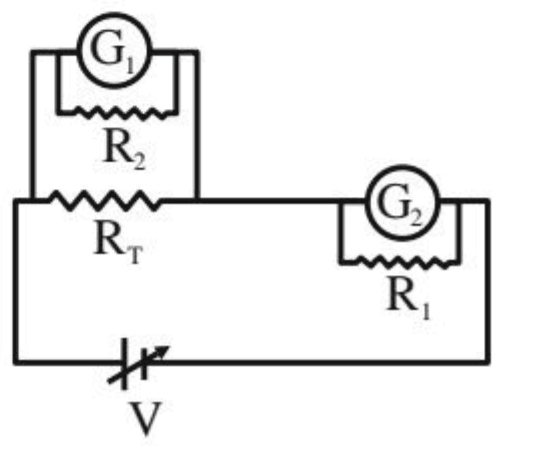

Four circuit diagrams showing different arrangements of galvanometers G1 and G2 with shunt/series resistors R1 and R2 connected with test resistor RT and variable voltage source V.

Step-by-step solutionView

Correct answer

An ammeter requires a very small resistance in parallel with a galvanometer, while a voltmeter requires a very large resistance in series with a galvanometer; both are then connected in series and parallel with the test resistor, respectively.

Option analysis

Why each option works or fails

A ·

Believing that connecting the small resistor $R_2$ in series with a galvanometer forms an ammeter, or placing the voltmeter in series with the load resistor. To create an ammeter, the low-resistance shunt must be in parallel with the galvanometer. An ammeter must then be connected in series with the test resistor.

B ·

Confusing the shunt resistor of an ammeter with the multiplier resistor of a voltmeter by putting the large resistor $R_1$ in parallel. A voltmeter needs a high resistance in series with the galvanometer, not in parallel. A parallel high resistance does not effectively limit current through a galvanometer.

C ·

None. This circuit correctly configures $G_1$ with $R_2$ in parallel to act as an ammeter in series with $R_T$ , and $G_2$ with $R_1$ in series to act as a voltmeter across $R_T$ . Correctly pairs low resistance in parallel for current measurement and high resistance in series for voltage measurement across the test resistor.

D ·

Reversing the functional roles of the converted meters by placing the voltmeter in series with the circuit and the ammeter in parallel. The ammeter ( $G_1$ with parallel $R_2$ ) must be placed in series with $R_T$ , while the voltmeter ( $G_2$ with series $R_1$ ) must be placed in parallel across $R_T$ .

Reviewed route

Solution

StepWorking

01concept

To verify Ohm's law for $R_T$ , we need an ammeter connected in series with $R_T$ to measure the current $I$ , and a voltmeter connected in parallel across $R_T$ to measure the potential difference $V$ . 1. Ammeter conversion: A galvanometer is converted into an ammeter by connecting a very low resistance (shunt, $R_2 = 0.001\,\Omega$ ) in parallel with it. 2. Voltmeter conversion: A galvanometer is converted into a voltmeter by connecting a very large resistance ( $R_1 = 10\,\text{M}\Omega$ ) in series with it.

02option_verdict

In option (0), the voltmeter is formed by putting $R_1$ in parallel with $G_1$ (which decreases effective resistance instead of increasing it) and the ammeter has $R_2$ in series with $G_2$ (which would unnecessarily add resistance in series).

03option_verdict

In option (1), the ammeter has $R_1$ in parallel and the voltmeter has $R_2$ in series, which swaps the roles of high and low resistors.

04option_verdict

Option (2) correctly puts $R_1 = 10\,\text{M}\Omega$ in series with $G_1$ to make an ideal-like voltmeter connected in parallel with $R_T$ , and puts $R_2 = 0.001\,\Omega$ in parallel with $G_2$ to make an ammeter connected in series with $R_T$ .

05option_verdict

In option (3), the voltmeter branch is incorrectly connected in series with $R_T$ and the ammeter is connected in parallel.

✓discriminator

Look for $R_2 = 0.001\,\Omega$ (small) in parallel with $G_2$ in series with $R_T$ , and $R_1 = 10\,\text{M}\Omega$ (large) in series with $G_1$ across $R_T$ . This uniquely identifies option (2).

Hints that build this answer step by step

How should a galvanometer be modified using an external resistor to function as an ammeter?
Connect a very small resistance ( $R_2 = 0.001\,\Omega$ ) in parallel with the galvanometer.
How should a galvanometer be modified using an external resistor to function as a voltmeter?
Connect a very large resistance ( $R_1 = 10\,\text{M}\Omega$ ) in series with the galvanometer.
How must the constructed ammeter and voltmeter be connected relative to the test resistor $R_T$ to verify Ohm's law?
The ammeter in series with $R_T$ , and the voltmeter in parallel across $R_T$ .

✓ Source and academic review

Question type: Single correct
Exam relevance: JEE Main · Physics
Concepts assessed: Physics
Academic status: Reviewed by official_key
Source: pyq
Editorial review: 9 September 2026

Quick checks

Students also ask

Why must an ammeter have low resistance and a voltmeter have high resistance?

An ammeter is placed in series, so low resistance ensures it does not alter the circuit current. A voltmeter is placed in parallel, so high resistance ensures it draws negligible current away from the component being measured.

Answer

An ammeter requires a very small resistance in parallel with a galvanometer, while a voltmeter requires a very large resistance in series with a galvanometer; both are then connected in series and parallel with the test resistor, respectively.

Why each option works or fails

A: - Believing that connecting the small resistor $R_2$ in series with a galvanometer forms an ammeter, or placing the voltmeter in series with the load resistor. To create an ammeter, the low-resistance shunt must be in parallel with the galvanometer. An ammeter must then be connected in series with the test resistor.
B: - Confusing the shunt resistor of an ammeter with the multiplier resistor of a voltmeter by putting the large resistor $R_1$ in parallel. A voltmeter needs a high resistance in series with the galvanometer, not in parallel. A parallel high resistance does not effectively limit current through a galvanometer.
C · correct: - None. This circuit correctly configures $G_1$ with $R_2$ in parallel to act as an ammeter in series with $\mathrm{R}_{\mathrm{T}}=10 \Omega$ , and $G_2$ with $R_1$ in series to act as a voltmeter across $R_T$ . Correctly pairs low resistance in parallel for current measurement and high resistance in series for voltage measurement across the test resistor.
D: - Reversing the functional roles of the converted meters by placing the voltmeter in series with the circuit and the ammeter in parallel. The ammeter ( $G_1$ with parallel $\mathrm{R}_{2}=0.001 \Omega$ ) must be placed in series with $R_T$ , while the voltmeter ( $G_2$ with series $R_1$ ) must be placed in parallel across $R_T$ .

Step-by-step solution

concept: To verify Ohm's law for $R_T$ , we need an ammeter connected in series with $R_T$ to measure the current $I$ , and a voltmeter connected in parallel across $R_T$ to measure the potential difference $V$ . 1. Ammeter conversion: A galvanometer is converted into an ammeter by connecting a very low resistance (shunt, $R_2 = 0.001\,\Omega$ ) in parallel with it. 2. Voltmeter conversion: A galvanometer is converted into a voltmeter by connecting a very large resistance ( $R_1 = 10\,\text{M}\Omega$ ) in series with it.
option_verdict: In option (0), the voltmeter is formed by putting $R_1$ in parallel with $G_1$ (which decreases effective resistance instead of increasing it) and the ammeter has $R_2$ in series with $G_2$ (which would unnecessarily add resistance in series).
option_verdict: In option (1), the ammeter has $R_1$ in parallel and the voltmeter has $R_2$ in series, which swaps the roles of high and low resistors.
option_verdict: Option (2) correctly puts $R_1 = 10\,\text{M}\Omega$ in series with $G_1$ to make an ideal-like voltmeter connected in parallel with $R_T$ , and puts $R_2 = 0.001\,\Omega$ in parallel with $G_2$ to make an ammeter connected in series with $R_T$ .
option_verdict: In option (3), the voltmeter branch is incorrectly connected in series with $R_T$ and the ammeter is connected in parallel.
discriminator: Look for $R_2 = 0.001\,\Omega$ (small) in parallel with $G_2$ in series with $R_T$ , and $R_1 = 10\,\text{M}\Omega$ (large) in series with $G_1$ across $R_T$ . This uniquely identifies option (2).
